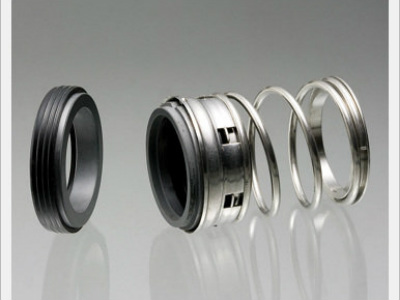

John Crane Type 1
The Type 100 (equivalent to John Crane type 1) is suitable for a wide range of service conditions, from water and steam to chemicals and corrosive materials.
Material used :
- Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
- Rotary Ring (Carbon/SiC/SSiC/TC)
- Secondary Seal (NBR/EPDM/Viton)
- Spring and Punched Parts (SS304/SS316)
Working conditions:
- Mediums: Water, oil and weakly-corrosive mediums
- Temperature: -20°C~150°C
- Pressure: ≤1MPa
- Speed: ≤ 12 m/Sec
